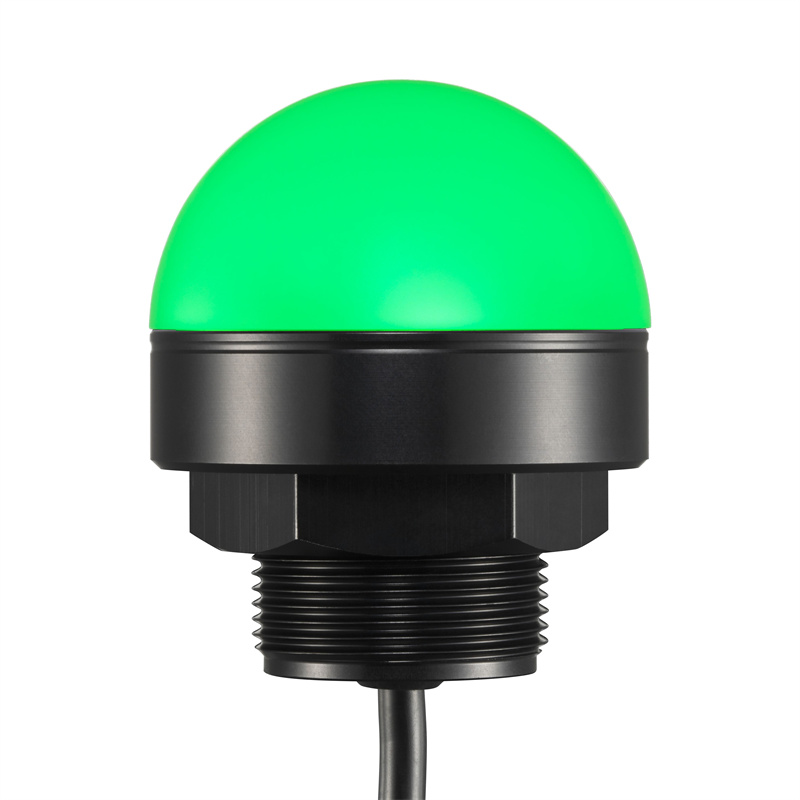

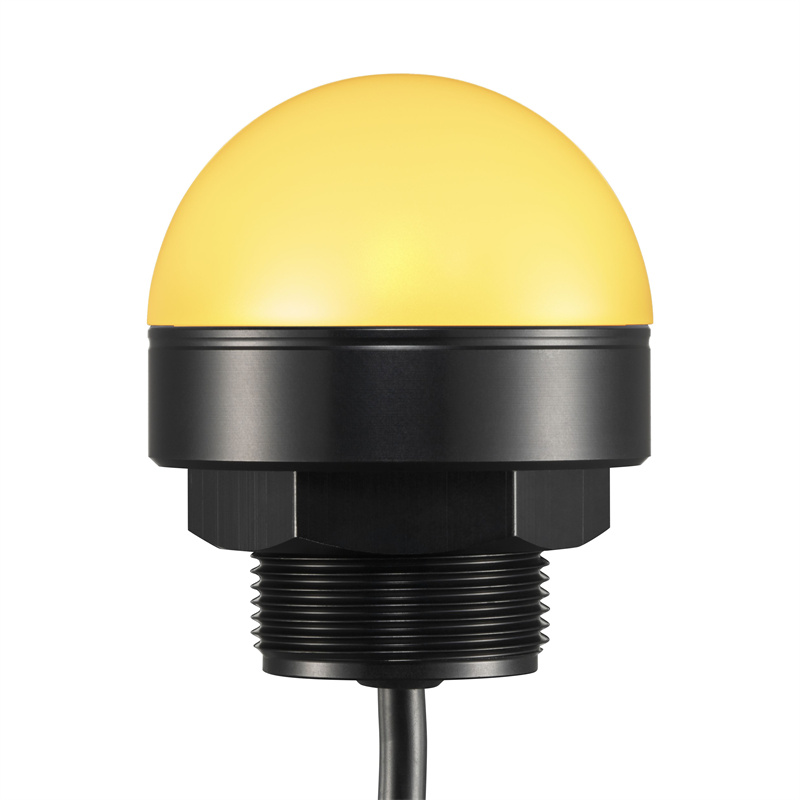

LED indicator is a signal indication device that uses LED as a light source. It has the characteristics of high efficiency, energy saving, and environmental protection. The protection grade is IP65, it can work in the environment of -40℃~55℃, and can adapt to special environments. The shell is usually made of engineering plastics, which can withstand high temperatures, corrosion, and flame retardancy.
The size of the led signal tower can be customized according to actual needs. Common sizes include Φ50, Φ70, Φ80, Φ90 etc. The colors of the LED signal indicator can be adjusted according to actual needs, and the brightness range is usually between 100~5000mcd.
LED signal indicators have a long service life, usually reaching more than 50,000 hours, which can meet the needs of long-term use.
AL-LED warning lamp features：
1. LED lamp with high brightness.
2. Alarming trumpet with several options,closed after minutes’ alarm.
3. Several shining ways to choose from.
4. Each single section works independently ,can be put together at customers’ request.
5. Protection grade IP65,can adapt special environment.
TAPE AND MEANING：
1. Outline dimension Appearance and Style
50 | 50E | 502 | 70 | 70E | 702 |
50 Modular | 50 Economical modular | 50 Single Lamp Style | 70 modular | 70 Economical modular | 70 Flat Stitching |
702E | 701 | 701E | 801 | 901 | |
70 Economical modular | 70 Single Lamp Style | 70 Economical modular | 80 Single Lamp Style | 90 Single Lamp Style |
|
2. Tower Lamp from Top to Bottom ,Each section emitting color.
R | G | Y | B | W |
| | | |
|
The behind of the color ,with digital.
1 | 2 | 3 |
Ordinary Shiny | Light Brighter | Light Flash Blasting |
NO Digital representative Ordinary Shiny.
There are only two Economical lighting modes :Ordinary Shiny and Light Brighter.
3. M:With buzzer
MD: With a separate buzzer
M: Behind M with Digital
1 | 2 | 3 |
Continuous Ring | Discontinuous Ring | Discontinuous Ring,delay close |
NO Digital representative Discontinuous Ring.
4. Voltage
AC/DC
22 | 23 | 24 | 25 |
12v | 24V | 36V | 48V |
DC
30 | 31 | 32 |
110V | 220V | 380V |
5. Base
P | Z | C |
Vertical base | Collapsible Universal base | Side mounting base |
No letters (paperback base).
6. Poling Scale(mm)
AL50 Poling Scale(mm) | ||
1-87 | 2-142 | 3-242 |
AL70/90Poling Scale(mm) | |||
1-58 | 2-88 | 3-119 | 4-168 |
5-218 | 6-268 | 7-318 |
|
