LA115-A1-11RD 1NO&1NC Double Head Push Button With Green & Red Head And With Light

Share to:

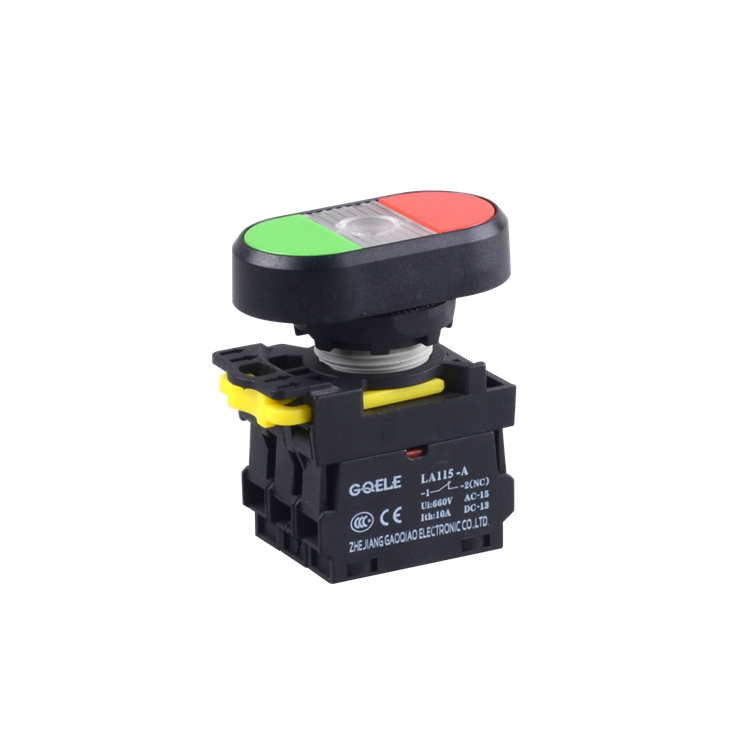

LA115-A1-11RD 1NO&1NC Double Head Push Button With Green & Red Head And With Light

Product Name : Double Head Push Button
Head Shape : Oval
Colors Of The Head : Red & Green
Action Of The Head : Momentary
Light : Yellow Light (Default)
Other Light Colors : Red/Green/ Blue/White
Normal Contact Pattern : 1NO&1NC
Material : Plastic
Certification : CE
Place Of Origin : Zhejiang, China

Availability:



Inquire

Product Description

NO contact

NC contact

Color, selector button and key lock button operation function and pulling out position

R	G	Y	B	W	K

Spring return action
f	fu	ffu
Left to centre	Right to centre	Left-Right to centre

2. Voltage

21-DC.AC	22-DC.AC	23-DC.AC	24-DC.AC	25-DC.AC
6V	12V	24V	36V	48V
26-DC.AC	27-DC.AC	28-DC	31-AC	32-AC
110V	127V	220V	220V	380V

3.

1	2	3	4	5	6

7	8	9	10	11	12

Working Environment

Ambient air temperature -25~+40°C

Limit height: ≤2000m

Relative air humidity: ≤90%

Pollution degree: Class3

Protection grade：IP40/IP65

Main Technical Data：

Rated value of switch:	AC-15 36V/10A 110V/10A 220V/5A 380V/2.7A 660V/1.8A
	DC-13 24V/4A 48V/4A 110V/2A 220V/1A 440V/0.6A

Conventional thermal current: 10A

Contact resistance: ≤50mΩ

Insulation resistance: ≥10mΩ

Mechanical life:	Push button≥100X104times; Selector switch ≥30X104 times
	Key Push button≥5X104times; Emergency Push button≥5X104times;

4. Mechanical form

Letter	Implication
	Flush push button
D	Illuminated push button
T	Maintained push button
TD	Illuminated maintained push button
M	Mushroom push button
MD	Illuminated mushroom button
MT	Maintained mushroom button
MTD	Illuminated maintained mushroom button
ZS	Emergency stop button
Y	2-Position key lock selector
YS	3-Position key lock selector
X	2-Position short level selector
XD	Illuminated 2-Position key lock selector
XS	3-Position short level selector
XSD	Illuminated 3-Position short level selector
CX	2-Position long level selector
CXD	Illuminated 2-Position long level selector
CXS	3-Position long level selector
CXSD	Illuminated 3-Position long level selector
R	Dual push button
RD	Illuminated dual push button
H	Extended push button
HD	Illuminated extended push button
HT	Maintained extended push button
HTD	Illuminated Maintained extended push button
HF	Higher flush button
B	Flush button marked

Square/Round push button switch double head push button plastic red green
