Product Description
① Push Button Code
② Design Serial Number
③ The Number Of NO Contact
④ The Number Of NC Contact

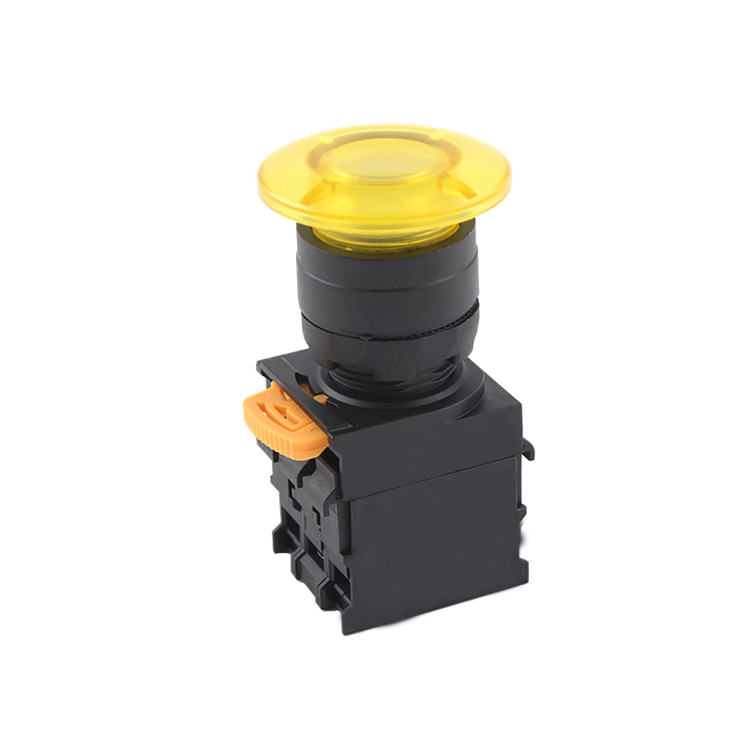

⑤ Mechanical Form : Illuminated Mushroom Push Button
MAIN TECHNICAL PARAMETER
◐ Conventional Thermal Current : Ith 10A
◐ Contact Resistance : ≤50mΩ
◐ Insulation Resistance : ≥10mΩ
◐ Mechanical Durability : ≥100*104 times
WORKING ENVIRONMENT
◒ Ambient Air Temperature : -25℃ ~ +40℃
◒ Altitude : ≤2000m
◒ Relative Air Humidity : ≤90%
◒ Pollution Degree : Class 3
EXPLANATION OF PROFESSIONAL TERMS
◀ NO Contact : Normally, it is in the off state. The circuit is
connected after the switch is operated.
◀ NC Contact : Normally, it is connected. The circuit is
disconnected after the switch is operated.
◀ 2 NO : Connect two sets of circuits separately. The contacts
are usually disconnected. Both sets of circuits are connected after the switch is pressed.
◀ 2 NC : The contacts are usually in the on state. After the switch is operated, both sets of circuits are disconnected.
◀ 1NO&1NC : The contacts are connected to two groups of circuits respectively. If no action is taken, one group is disconnected and the other group is connected. If the switch is operated, the disconnected contact will be closed while the connected one will be opened.
