Start and stop button switch, generally used for start and stop. Generally, there are green, red, yellow and so on. We usually use the green button as start, the red button as stop, and the yellow button as jog.
In fact, their internal structure is the same.

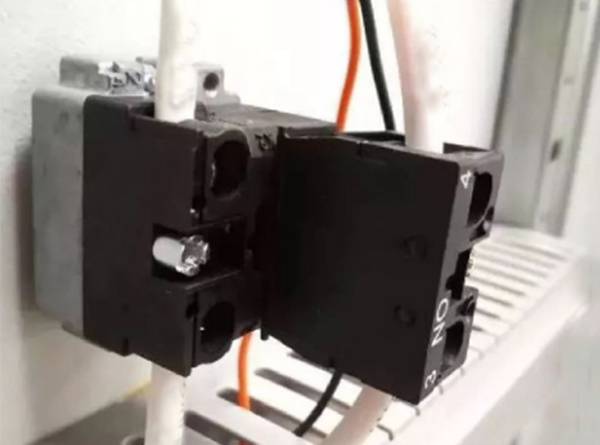

See the start, pass, and reset in the first picture for the physical picture. The start and reset buttons are different from the pass button. The start and reset buttons are push button switches with indicator lights. The physical contact diagram is as follows:
