The button switch may be the simplest component in the electrical circuit, but it controls the lifeblood of the entire control circuit, so it is also called the "master switch". Understanding all kinds of button switches and using them skillfully and flexibly can make us get twice the result with half the effort.
Button switches are used to switch on or off small current circuits in a short period of time, and are mainly used in electrical control circuits. The current allowed to flow through the button switch is small, generally not more than 5A.
The button is generally composed of a button cap, a return spring, a bridge-type moving contact, a static contact, a pillar connecting rod, and a housing. The opening and closing state of the contacts when the button is not subjected to external force (that is, static), is divided into a stop button (that is, a dynamic break button), a start button (that is, a dynamic close button) and a reset button (that is, a combination of a dynamic close and a dynamic break. integrated button). When the button is under the action of external force, the opening and closing state of the contact changes: the normally open contact under static state is closed, and the normally closed contact under static state is open.
Different characteristics of metal buttons made of stainless steel and aluminum alloy
|
|
|
|
Stainless steel: Stainless steel has the characteristics of high strength, corrosion resistance, and high temperature resistance. It is one of the commonly used materials for making metal buttons.
Aluminum alloy: The aluminum alloy material has the characteristics of lightness, high strength, and good thermal conductivity, and is often used to make metal buttons.
Copper: Copper has good electrical and thermal conductivity, and has a beautiful appearance. It is often used to make high-end metal buttons.
Brass: Brass has good machinability and corrosion resistance, and is golden in color, and is often used to make metal buttons.
Titanium alloy: Titanium alloy material has the characteristics of high strength, light weight, and corrosion resistance. It is a high-grade metal button material.
The above are the main materials of metal buttons switch. Metal buttons of different materials are different in appearance, performance and price. Choosing the right material can be considered according to specific application requirements and cost budget.
GQEM provides high-quality push button switch products, including LED push button switches, metal push button switches, indicator lights and other types. Our push button switches have high sensitivity, stability and reliability, and are widely used in home appliances, automobiles, medical care and other fields .Welcome to visit GQEM official website: www.gqele.com for more information.
A button is a control switch that is operated by applying force from a certain part of the human body (usually a finger or palm) and has a spring energy storage reset. It is the most commonly used master electrical appliance.
The current allowed to pass through the contact of the button is relatively small, generally no more than 5A. Therefore, under normal circumstances, it does not directly control the on-off of the main circuit (high current circuit), but sends an instruction signal in the control circuit (small current circuit) to control electrical appliances such as contactors and relays, and then they
When the button is under the action of external force, the opening and closing state of the contact changes.
Buttons are ubiquitous in our daily lives, serving as a critical interface between humans and technology. These small yet powerful devices are used to activate a wide range of functions, from turning on a light switch to launching a rocket into space. In this article, we will explore the functions and manufacturing process of buttons.
Function of Buttons:
Buttons are used to initiate a specific function or operation. They can be simple or complex, ranging from a basic on/off switch to a multifunctional keypad. Some common examples of button functions include:
Power on/off: A button is used to turn on or off an electronic device.
Volume control: Buttons are used to adjust the volume of a device, such as a speaker or TV.
Navigation: Buttons are used to move through menus and select options on a screen.
Input: Buttons are used to enter data, such as letters or numbers, into a device.
Buttons can be found in a wide range of devices, including smartphones, computers, cars, and household appliances. They are designed to be easy to use and reliable, ensuring that users can interact with technology in a seamless and intuitive way.
Manufacturing of Buttons:
The process of manufacturing buttons involves several steps, including design, molding, and assembly. Here are the typical steps involved in creating a button:
Design: The first step is to create a design for the button. This involves deciding on the size, shape, and color of the button, as well as any symbols or text that will be included.
Mold making: Once the design is finalized, a mold is created using a special material, such as steel or aluminum. The mold is shaped to match the desired size and shape of the button.
Injection molding: The mold is then filled with a special material, such as plastic or rubber, and heated until it solidifies. This process is known as injection molding, and it allows for precise and consistent production of buttons.
Assembly: Once the button has been molded, it is ready for assembly. This involves attaching any necessary components, such as springs or circuits, and testing the button to ensure that it functions properly.
Overall, buttons are an essential part of our daily lives, and they are manufactured using a complex and precise process. With their wide range of functions and designs, buttons will continue to play a critical role in how we interact with technology for many years to come.
Signal indicator light, a device that uses light to monitor the working or position status of circuits and electrical equipment. It is also the most intuitive and unique monitoring component in automation equipment. The main function is usually used to reflect the working state of the circuit (with or without electricity), the working state of electrical equipment (running, outage or test) and position state (closed or disconnected), etc. To remind the operator to deal with the fault in time, or operate a certain function to complete the relevant action
Meaning: Represents safety, normality, readiness (that is, an indication of safe operating conditions or the preparation of mechanical equipment to start).
Function: It is often used to indicate the ready-to-start state of the equipment. All auxiliary components are in the ready-to-use state, various parts are in the start-up state, and the voltage is within the specified range.
(2) Red
Meaning: Represents an alarm or a stop of an abnormal situation (ie, a light alarm for a situation that may be dangerous and requires immediate attention).
Function: It is often used for important parts of the equipment to be cut off by protective appliances, and the temperature exceeds the specified limit.

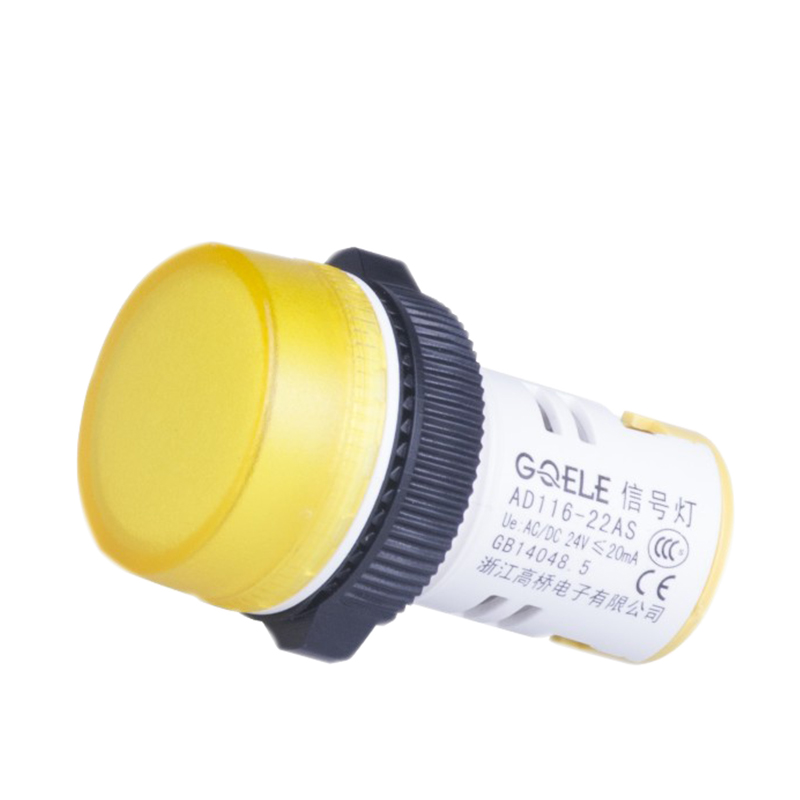

(3) Yellow
Meaning: stands for warning (that is, state change or approaching limit value) standby, intervention
Function: It generally reminds the operator to pay attention to the standby or operation status of the equipment, especially the debugging state or the short-term stay state.
