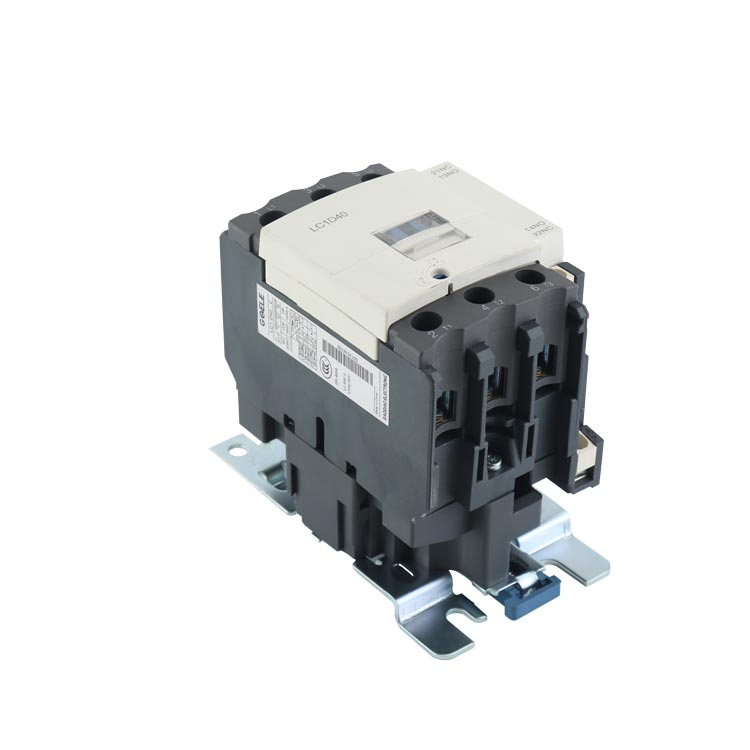

CJX2-(LC1-DN series AC contactors are suitable for AC50Hz (or 60Hz) circuits with a rated operating current of 9-330A when the AC-3 load is used. This product is mainly used for long-distance connection and disconnection of power lines , Also used for frequent start, stop and control of AC motor starter. The production of the product complies with IEC60947-4-land GB14048.4 standards.
① Design serial number of AC contactor
② Rated Current: 40A
MAIN TECHNICAL DATA
| Rated working current | |||||||
| Le max AC-3(Ue≤V) | 9A | 12A | 18A | 25A | 32A | 38A | |
| Le AC-1(0≤60℃ | 25A | 32A | 40A | 50A | |||
| Rated insulation voltage | 690V | ||||||
| Number of poles | 3 | 3 4 | 3 | 3 4 | 3 | ||
| 220/240V | 2.2KW | 3KW | 4KW | 5.5KW | 7.5KW | 9KW | |
| 380/400V | 4KW | 5.5KW | 7.5KW | 11KW | 15KW | 18.5KW | |
| Rated work | 415/440V | 4KW | 5.5KW | 9KW | 11KW | 15KW | 18.5KW |
| AC-3Power at AC-3 category | 550V | 5.5KW | 7.5KW | 10KW | 15KW | 18.5KW | 18.5KW |
| 600/690V | 5.5KW | 7.5KW | 10KW | 15KW | 18.5KW | 18.5KW | |
| 1000V | – | – | – | – | – | – | |
| Rheostat | Auxiliary contact range: up to 4 normally closed or normally open momentary, up to 1 normally open +1 normally closed with delay, upto 2 normally open protective contacts and 2 screen terminals Compatible with manual or automatic thermal overload relays. | ||||||
