B |
E |
Metal Series |
Plastic Series |
.
A |
L |
P |

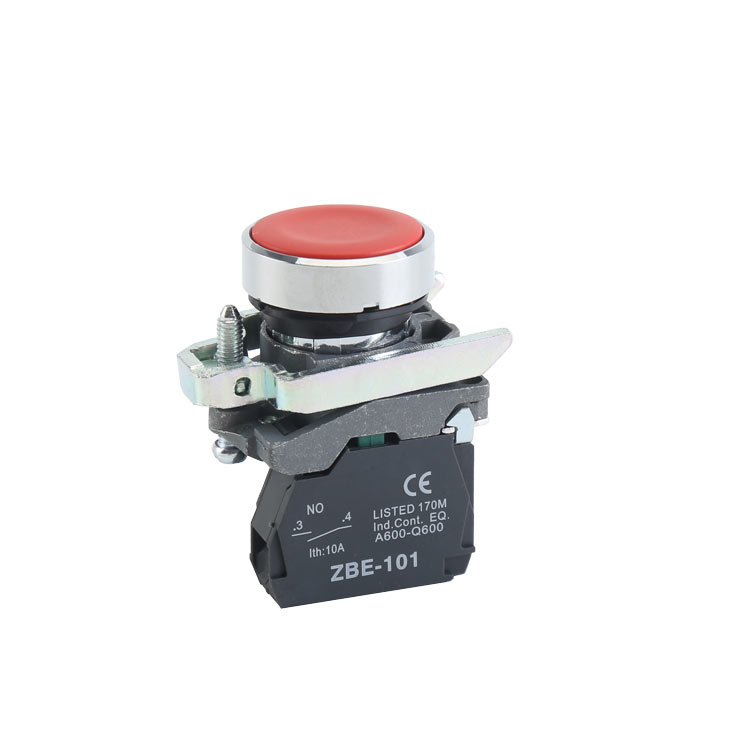

Flush Push button |
Extended Push button |
Push button (Cover) |
W |
D |
J |
Push button(Illuminated) |
Selector Switch (Short-handle) |
Selector Switch (Long-handle) |
G |
E |
Z |
Key-operated |
Contact Block |
Contact Block+Holder |
B |
C |
R |
Mushroom push buttonΦ30 |
Mushroom push buttonΦ40 |
Mushroom push buttonΦ60 |
S4 |
S5 |
S6 |
Emergency Stop Push button (Twist ReleaseΦ30) |
Emergency Stop Push button (Twist ReleaseΦ40) |
Emergency Stop Push button (Twist ReleaseΦ60) |
T |
V |
|
Emergency Stop Push button(Pull Release) |
Pilot Light |
.Color
1 |
2 |
3 |
4 |
5 |
6 |
White |
Black |
Green |
Red |
Yellow |
Blue |
.Selector switch BD BJ BG
2 |
3 |
4 |
2-position (Maintained) |
3-position (Maintained) |
2-position (Momentary,R to L) |
5 |
6 |
7 |
3-position(Momentary R toC&l to C) |
3-position (Momentary,R to L) |
3-position (Momentary,L to C) |
.Contact Block
1 |
2 |
3 |
4 |
5 |
1NO |
1NC |
2NO |
2NC |
1NO+1NC |
Working Environment Main Technical Data
Working environment temperature |
-25~+70°C |
Storage temperature |
-40~+70°C |
Class of pollution |
Class3 |
Limit height |
≤2000M |
Standard |
EN60947-1,GB14048.5 |
Rated insulation voltage |
600V |
Rated thermal current |
10A |
Switch rating |
AC-15 Ue :380V/250V , Ie=4.5A DC-15 Ue :220V/110V , Ie=0.6A |
Contact resistance |
≤50mA |
Recommended torque |
0.9Nm |
Connectable area |
(min)1X0.5mm2(Max)2X1.5mm2(or)1X2.5mm2 |
Mechanical life |
Push button≥300X104 times ,Selector switch ≥1004times |
Emergency Stop Push button |
≥30X104times; |
Electrical life |
≥30X104times; |
Limit voltage (Lamp) |
0.8Ue≤U≤1.15Ue |
