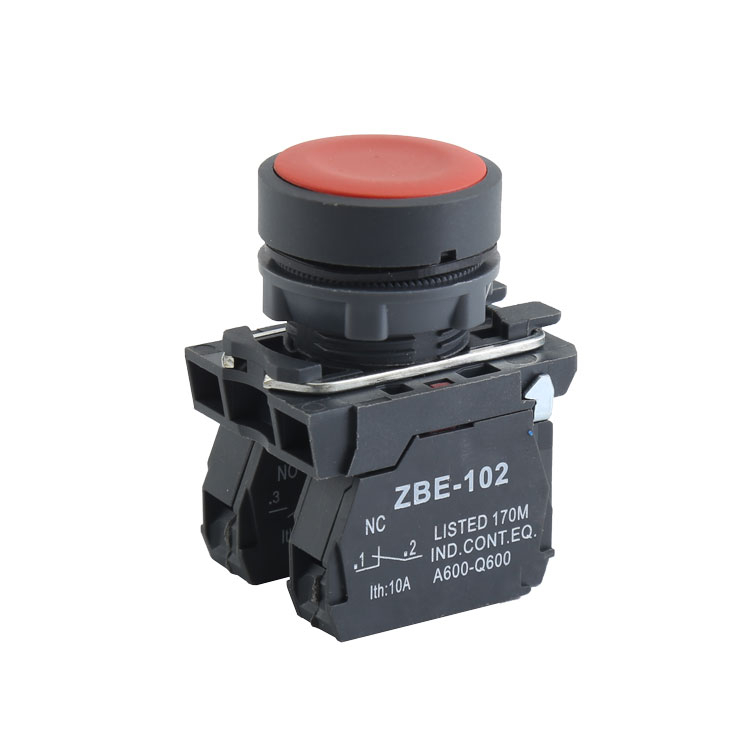

GXB4-EA45 High Quality 1NO&1NC Momentary Flush Push Button With Red Round Head And Without Illumination For Automation Equipment

Product Name : Flush Push Button
Head Shape : Round
Mounting Hole Size: 22MM
Switch Value: Ith: 10A, UI: 600V
Color Of The Head : Red
Other Color of the Light: Green/Yellow/Blue/White
Action Of The Head : Momentary
LED Light : Without Light
Normal Contact Pattern : 1NO&1NC
Material : Plastic
Certification: CE
Place Of Origin : Zhejiang, China
Available equipment: Elevators, charging piles, automation equipment, motor vehicles, yachts, access control, automatic guided vehicles, lathes, lifts, lawn mowers

Share to:

① GXB4 Series

②EA: Plastic Flush Push Button (Momentary)

③ Head Color : 1- White ; 2- Black ; 3- Green; 4- Red; 5 -Yellow; 6- Blue

④Contact Type : 1-1NO; 2-1NC; 3-2NO; 4-2NC ; 5-1NO+1NC

MAIN TECHNICAL DATA

◒ Rated Insulation Voltage : 600V

◒ Rated Thermal Current : 10A

◒ Switch Rating:  AC-15   Ue : 380V/250V, Ie=4.5A

  DC-13   Ue : 220V/110V, Ie=0.6A

◒ Contact Resistance : ≤50 mA

◒ Recommended Torque : 0.9 Nm

◒ Mechanical Life Of Push Button : ≥1000000 times

Selector button ≥500000 times,

Emergency push button≥50000 times

◒ Electrical Life : ≥1000000 times

◒Limit Voltage(lamp):0.8Ue≤U≤1.15Ue

WORKING ENVIRONMENT

◐ Working Environment Temperature : -25°C ~ +70°C

◐ Storage Temperature : -40°C ~ +70°C

◐ Class Of Pollution : 3 level

◐ Protection Grade : IP40/IP65/IP66

◐ Limit Height : ≤2000M

◐ Standard : EN 60947-1,GB14048.5

PARAMETRIC DIAGRAM

WHY CHOOSE US

① What is your MOQ?

—- We don’t have MOQ for the standard items.

 ②What are your terms of payment?

—- We accept T/T, L/C payment.

 ③How long is the delivery date?

—-The standard lead time 1- 2 weeks.

 ④Are you a manufacturer? Where is the factory?

—- Yes, we are manufacturer. Our factory is located in Wenzhou, Zhejiang.

⑤What support can I get if you become my supplier?

—-If you are our customer, you will get the following VIP services.

  * Professional Technical Support From GQEM Team

  * Special Price Support

  * Lead Time Support

  * Free Samples Support
