① Push Button Code

② Design Serial Number

③ The Number Of NO Contact

④ The Number Of NC Contact

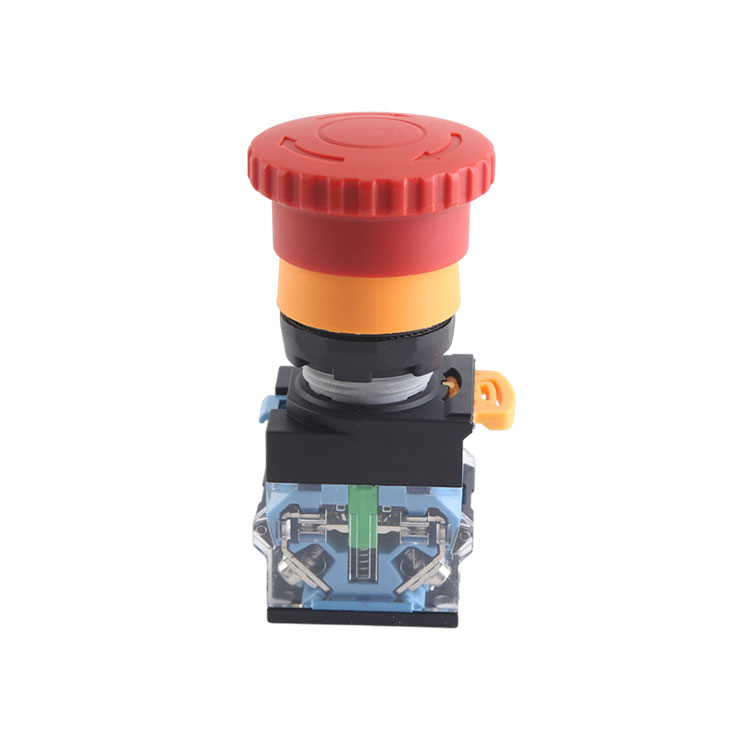

⑤ Mechanical Form : Emergency Stop Button

MAIN TECHNICAL PARAMETER

Conventional Thermal Current : Ith 10A

Contact Resistance : ≤50mΩ

Insulation Resistance : ≥10mΩ

Mechanical Durability : ≥5*10⁴ times

WORKING ENVIRONMENT

Ambient Air Temperature : -25℃ ~ +40℃

Altitude : ≤2000m

Relative Air Humidity : ≤90%

Pollution Degree : Class 3

FAQ

1) What Is An Emergency Stop Push Button?

Emergency stop push button, also known as emergency stop switch, emergency switch, stop switch or emergency button, is a kind of fail-safe control switch to provide safety assurance for machinery and equipment. It is the one which uses machines.

2) What Is The Function Of An Emergency Stop Push Button?

The emergency stop push button is a safety mechanism used to shut down the machine in an emergency when it cannot be shut down in the usual way. The purpose of this kind of push button is to quickly stop the machine if there is a risk of injury or if the work flow needs to be stopped. And this kind of push button is designed to avoid injury or reduce existing hazards to people, machinery or work. Thus, people also call it a safety push button switch or push button safety switch.
