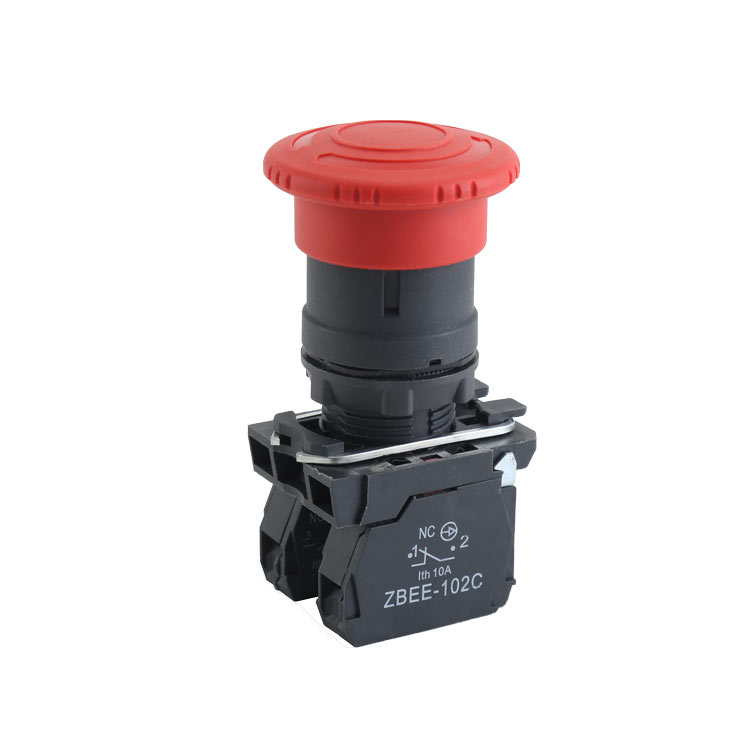

Normal 1NO & 1NC Red Plastic Emergency Stop Push Button Switch With Φ40 Mushroom Shape Head And Twist Release And High Quality

1NO & 1NC Φ40 Mushroom Emergency Stop Push Button Switch

Normal 1NO & 1NC Red Plastic Emergency Stop Push Button Switch With Φ40 Mushroom Shape Head And Twist Release And High Quality

Product Name : Emergency Stop Push Button
Head Shape : Mushroom
Head Size : Φ40
Color Of The Head : Red
Action Of The Head : Twist Release
Contact Pattern : 1NC & 1NC
Material : Plastic
Certification : CE
Place Of Origin : Zhejiang, China

Share to:

B	E
Metal Series	Plastic Series

A	L	P
Flush Push button	Extended Push button	Push button (Cover)
W	D	J
Push button(Illuminated)	Selector Switch (Short-handle)	Selector Switch (Long-handle)
G	E	Z
Key-operated	Contact Block	Contact Block+Holder
B	C	R
Mushroom push buttonΦ30	Mushroom push buttonΦ40	Mushroom push buttonΦ60
S4	S5	S6
Emergency Stop Push button (Twist ReleaseΦ30)	Emergency Stop Push button (Twist ReleaseΦ40)	Emergency Stop Push button (Twist ReleaseΦ60)
T	V
Emergency Stop Push button（Pull Release）	Pilot Light

.Color

1	2	3	4	5	6
White	Black	Green	Red	Yellow	Blue

.Selector switch BD BJ BG

2	3	4
2-position (Maintained)	3-position (Maintained)	2-position (Momentary,R to L)
5	6	7
3-position(Momentary R toC&l to C)	3-position (Momentary,R to L)	3-position (Momentary,L to C)

.Contact Block

1	2	3	4	5
1NO	1NC	2NO	2NC	1NO+1NC

Working Environment Main Technical Data

Working environment temperature	-25~+70°C
Storage temperature	-40~+70°C
Class of pollution	Class3
Limit height	≤2000M
Standard	EN60947-1,GB14048.5
Rated insulation voltage	600V
Rated thermal current	10A
Switch rating	AC-15 Ue :380V/250V , Ie=4.5A DC-15 Ue :220V/110V , Ie=0.6A
Contact resistance	≤50mA
Recommended torque	0.9Nm
Connectable area	（min)1X0.5mm2（Max)2X1.5mm2（or)1X2.5mm2
Mechanical life	Push button≥300X104 times ,Selector switch ≥1004times
Emergency Stop Push button	≥30X104times;
Electrical life	≥30X104times;
Limit voltage (Lamp)	0.8Ue≤U≤1.15Ue

. GXB4 Series

EA	EC
Flush Push button (Momentary)	Push button,Mushroom (Momentary,φ40)
EL	ER
Extended Push button (Momentary)	Push button,Mushroom (Momentary,φ60)
EP
Flush Push button (Cover)(Momentary)
