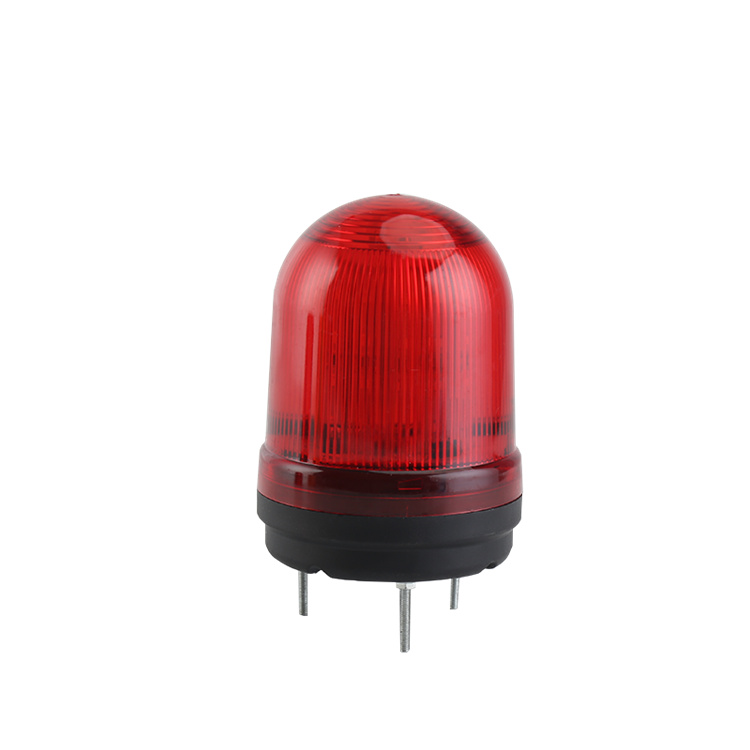

AL-LED warning lamp series:
1. LED lamp with high brightness.
2. Alarming trumpet with several options,closed after minutes’ alarm.
3. Several shining ways to choose from.
4. Each single section works independently ,can be put together at customers’ request.
5. Protection grade IP65,can adapt special environment.
TAPE AND MEANING:
1. Outline dimension Appearance and Style
50 | 50E | 502 | 70 | 70E | 702 |
50 Modular | 50 Economical modular | 50 Single Lamp Style | 70 modular | 70 Economical modular | 70 Flat Stitching |
702E | 701 | 701E | 801 | 901 | |
70 Economical modular | 70 Single Lamp Style | 70 Economical modular | 80 Single Lamp Style | 90 Single Lamp Style |
|
2. Tower Lamp from Top to Bottom ,Each section emitting color.
R | G | Y | B | W |
| | |
The behind of the color ,with digital.
1 | 2 | 3 |
Ordinary Shiny | Light Brighter | Light Flash Blasting |
NO Digital representative Ordinary Shiny.
There are only two Economical lighting modes :Ordinary Shiny and Light Brighter.
3. M:With buzzer
MD: With a separate buzzer
M: Behind M with Digital
1 | 2 | 3 |
Continuous Ring | Discontinuous Ring | Discontinuous Ring,delay close |
NO Digital representative Discontinuous Ring.
4. Voltage
AC/DC
22 | 23 | 24 | 25 |
12v | 24V | 36V | 48V |
DC
30 | 31 | 32 |
110V | 220V | 380V |
5. Base
P | Z | C |
Vertical base | Collapsible Universal base | Side mounting base |
No letters (paperback base).
6. Poling Scale(mm)
AL50 Poling Scale(mm) | ||
1-87 | 2-142 | 3-242 |
AL70/90Poling Scale(mm) | |||
1-58 | 2-88 | 3-119 | 4-168 |
5-218 | 6-268 | 7-318 |
|
Product Description:
1. Divided into two categories:
The first protection: prevent the human body from touching or approaching the live parts in the shell and touching the rotating parts in the shell (except smooth rotating shafts and similar parts).
The second protection: to prevent harmful injuries caused by water inflow into the motor.
Our products can reach the grade of IP65. It means: when the user installs it correctly, our products can completely prevent dust from entering, which will not affect the normal operation of the equipment, and can prevent touching or approaching the live or rotating parts in the shell; It can also protect the water jet, and the water jet aimed at the equipment from any direction will not affect the use of the product and has no harmful effects.
2. The transparent cover is made of PC material, which is made of high polymer PC. It has stronger light transmittance, better impact resistance, UV resistance, and aging resistance.
The base is generally made of PA66 or ABS alloy. It can adapt to harsh environments with normal temperatures ranging from minus 25 to plus 55 degrees celsius and extreme temperatures ranging from minus 40 to plus 70 degrees celsius.
