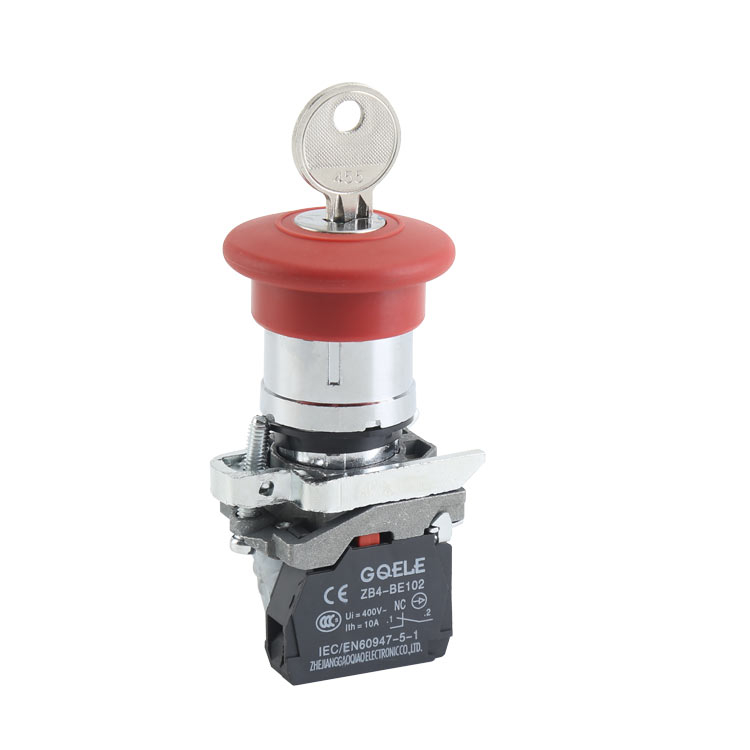

High Quality 1NC Emergency Stop Push Button Switch With Key Control Emergency Stop & Mushroom Shape Head & Rotating Reset

Product Name : Key Emergency Stop Push Button
Head Shape : Mushroom
Color Of The Head : Red
The Way Of Control : Key Control
Action Of The Head : Key Rotating Release
Light : No Light
Contact Pattern : 1NC
Material:Metal
Certification: CE
Place Of Origin : Zhejiang, China

Availability:


.


B

E

Metal Series

Plastic Series


.

A

L

P

Flush Push button

Extended Push button

Push button (Cover)

W

D

J

Push button(Illuminated)

Selector Switch (Short-handle)

Selector Switch (Long-handle)

G

E

Z

Key-operated

Contact Block

Contact Block+Holder

B

C

R

Mushroom push buttonΦ30

Mushroom push buttonΦ40

Mushroom push buttonΦ60

S4

S5

S6

Emergency Stop Push button (Twist ReleaseΦ30)

Emergency Stop Push button (Twist ReleaseΦ40)

Emergency Stop Push button (Twist ReleaseΦ60)

T

V


Emergency Stop Push button(Pull Release)

Pilot Light



.Color

1

2

3

4

5

6

White

Black

Green

Red

Yellow

Blue


.Selector switch BD BJ BG


2

3

4

2-position (Maintained)

3-position (Maintained)

2-position (Momentary,R to L)

5

6

7

3-position(Momentary R toC&l to C)

3-position (Momentary,R to L)

3-position (Momentary,L to C)


.Contact Block

1

2

3

4

5

1NO

1NC

2NO

2NC

1NO+1NC


Working Environment      Main Technical Data


Working  environment temperature

-25~+70°C

Storage  temperature

-40~+70°C

Class of pollution

Class3

Limit height

≤2000M

Standard

EN60947-1,GB14048.5

Rated insulation voltage

600V

Rated thermal current

10A

Switch rating

AC-15 Ue :380V/250V , Ie=4.5A DC-15 Ue :220V/110V , Ie=0.6A

Contact resistance

≤50mA

Recommended torque

0.9Nm

Connectable area

(min)1X0.5mm2(Max)2X1.5mm2(or)1X2.5mm2

Mechanical life

Push button≥300X104 times ,Selector switch ≥1004times

Emergency Stop Push button

 ≥30X104times;

Electrical life

≥30X104times;

Limit voltage (Lamp)

0.8Ue≤U≤1.15Ue
