ChangeOver Switch, also known as a combination switch, is a plane operation that rotates left and right. The transfer switch is mostly used for the introduction switch of power supply in the electrical control circuit of machine tools, playing the role of isolating power supply, and can also be used as a control switch that directly controls the infrequent start and stop of small-capacity asynchronous motors. Transfer switches are also available in single, double, and triple poles.

Changeover switch is a switching appliance that can be used for two or more power supplies or load conversion. Changeover switch is composed of multi-section contacts, and is mostly used in electrical equipment to turn on and off circuits infrequently, connect power and load, measure three-phase voltage, and control the forward and reverse rotation and star-delta start of small-capacity asynchronous motors. These parts are bolted together as a whole.

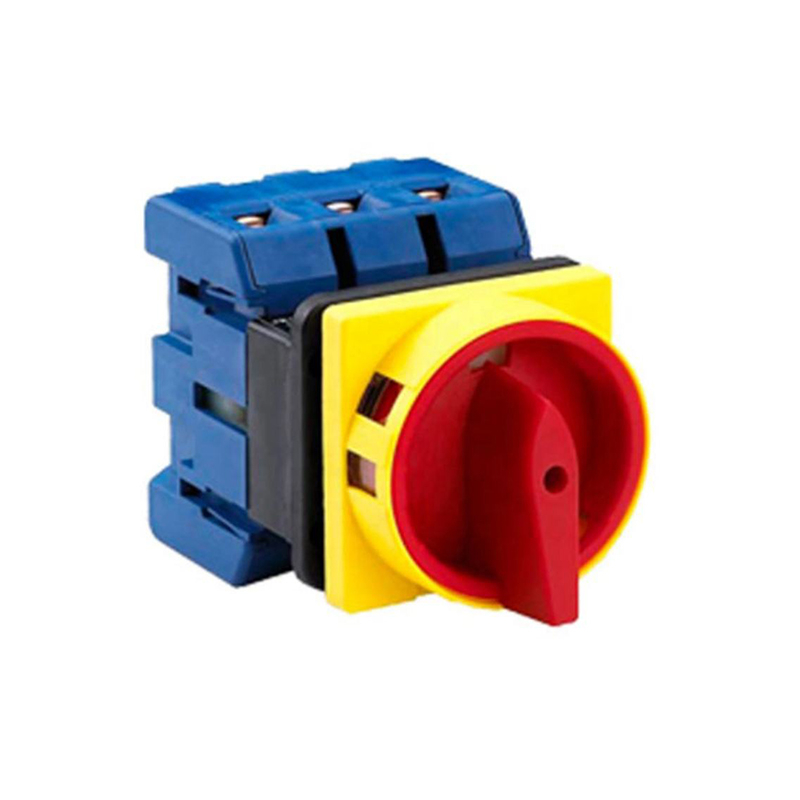

Universal Rotary Changeover Switch, 3 Poles 3 Phases 3NO Rotary Cam On-Off Power Switch, Load Circuit Breaker Switch 440V-(80A)

①Universal Change-Over Switch

②Design code

③Rated operating current

④Number of poles

Operation

◆ The changeover switch drives the shaft and cam to make or break the contact by its handle. Its cam shape is different. Thus, when the handle is in different positions, the contacts are different, so as to achieve the purpose of the conversion circuit.

◆The operation positions of the handle of the changeover switch are indicated by the angles. And different types of the switches have different contacts.

Structure

◆The changeover switch is composed of multiple groups of operating mechanism, positioning device, contact, contact system, rotating shaft,handle and other components.

◆The changeover switch’s contact, the double break contact bridge structure, is in the insulated base. The moving contact is designed to be the automatically adjustable style to ensure that the contact can be closed and broken at the same time. Besides, the static contact is installed in the contact seat. When used, it relies on the cam and bracket to operate and control the closing and breaking of the contact.

Characteristic

Fine processing, selection of premium material, quality assurance.

High strength, no deformation, no , long service life.

Small size, compact structure, stable performance.

With the function of protecting fingers to prevent the risk of electric shock.

Applicable to machine tools, machinery, chemicals, textiles and other fields.

Working Conditions

The ambient temperature : ≤ +40℃.

The average temperature within 24 hours ：≤ 35℃

The lower limit of ambient temperature : ≥ -5℃

When the highest temperature reaches +40℃, the relative air humidity shouldn’t  be more than 50%. Higher relative humidity is allowed in the relatively lower temperature, such as 90% humidity in 20℃. The measure should be taken to deal the condensation occasionally caused by the temperature change.

The surrounding environment should be clean without the flammable and dangerous substances, gases that can damage insulation and metal, and conductive dust.

Technical Parameter

Model	GW30-25(20）	GW30-32	GW30-40	GW30-63	GW30-80	GW30-100
Rated Heating Current Ith   A	25(20)	32	40	63	80	100
Rate Voltage Ue V	240   440	240  440	240   440	240 440	240  440	240    440
AC-21A A/KW	20/-  20/-	32/-  32/-	40/-  40/-	63/- 63/-	80/- 80/-	100/- 100/-
AC-22A A/KW	20/-  20/	32/-  32/-	40/-  40/-	63/- 63/-	80/- 80/-	100/- 100/-
AC-23A A/KW	15/4     15/7.5	22/5.5 22/11	30/7.5 30/15	43/11 43/22	57/18.5 57/30	70/22 70/37
AC-3 A/KW	11.7/3 11.7/5.5	15/4 15/7.5	22/7.5 22/11	36/11 36/18.5	43/15 43/22	57/18.5 57/30

Dimensional Drawing
