①: GXB2 Series

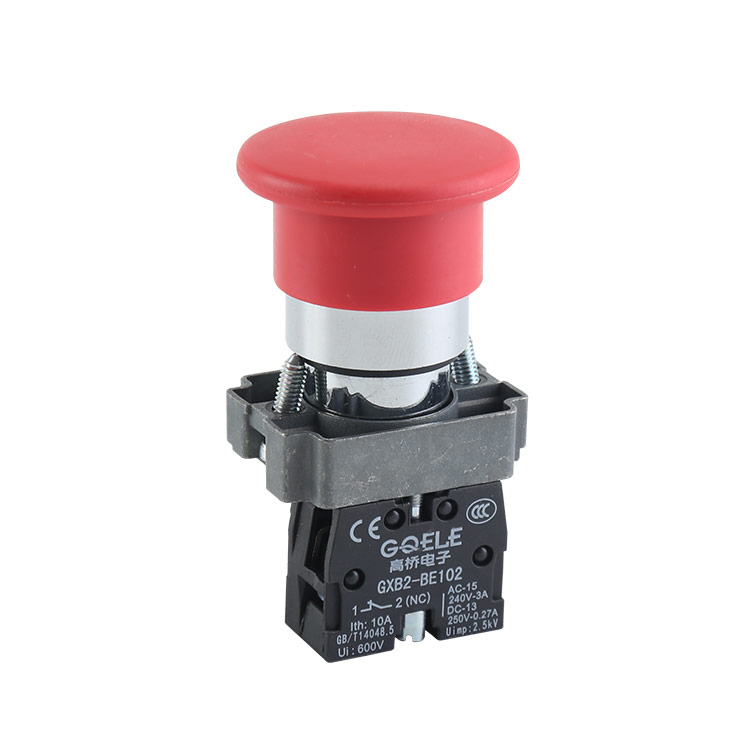

②: Metal Mushroom Push Button (Momentary; φ40)

③ Head Color : 1- White ; 2- Black ; 3- Green; 4- Red; 5 -Yellow; 6- Blue

④Contact Type : 1-1NO; 2-1NC; 3-2NO; 4-2NC ; 5-1NO+1NC

MAIN TECHNICAL DATA

Rated insulation voltage :600V

Rated thermal current:10A

Switch rating:AC-15 Ue:380V/250V, le=4.5A;DC-13Ue:220V/110V,le=0.6A

Contact resistance:≤50mA

Recommended torque :0.9Nm

Connectable area:min 1×0.5mm²,Max 2×1.5mm²0r 1×2.5mm²

Mechanical life:Push button≥300×10⁴ times;Selector Switch≥100⁴times

Emergency Stop Push button≥30×10⁴ times

Electrical life:≥30×10⁴ times

Limit voltage(lamp):0.8Ue≤U≤1.15Ue

Working Environment

Working environment temperature:-25~+70℃

Storage temperature:-40~+70℃

Class of pollution :3level

Protection grade:IP40/IP65/IP66

Limit height:≤2000m

Standard:EN 60947-1,GB14048.5

PARAMETRIC DIAGRAM
