Signal indicator light, a device that uses light to monitor the working or position status of circuits and electrical equipment. It is also the most intuitive and unique monitoring component in automation equipment. The main function is usually used to reflect the working state of the circuit (with or without electricity), the working state of electrical equipment (running, outage or test) and position state (closed or disconnected), etc. To remind the operator to deal with the fault in time, or operate a certain function to complete the relevant action.
Push button switch, also known as control button (referred to as button), is a low-voltage electrical appliance that can be manually reset and generally automatically reset. Buttons are usually used in circuits to issue start or stop commands to control the on and off of electric coil currents such as electromagnetic starters, contactors, and relays.
Main functions: generally used in control circuits with AC and DC voltages below 440V and currents less than 5A, generally do not directly manipulate the main circuit, but can also be used in interconnected circuits. In order to control the operation of the equipment, stop, pause or reset and other functions.
Start and stop button switch, generally used for start and stop. Generally, there are green, red, yellow and so on. We usually use the green button as start, the red button as stop, and the yellow button as jog.
In fact, their internal structure is the same.

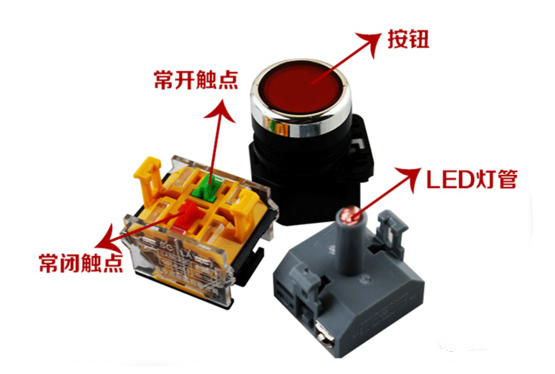

See the start, pass, and reset in the first picture for the physical picture. The start and reset buttons are different from the pass button. The start and reset buttons are push button switches with indicator lights. The physical contact diagram is as follows:
Wiring problem with button switch
1. How to wire the button switch with light. There are five terminals on the button. Now I can only measure how to connect the power line, but I don’t know how to connect the light.
Answer: This situation is relatively simple. This kind of switch should have two terminals connected to the light, and the other three terminals are for switches. Find out the terminal connected to the light and the terminal of the switch, and then distinguish which two terminals you want to use to connect Switch, directly connect the light and the switch terminal to be connected in series, so that when the switch is turned on, the light will be on.
